About Project

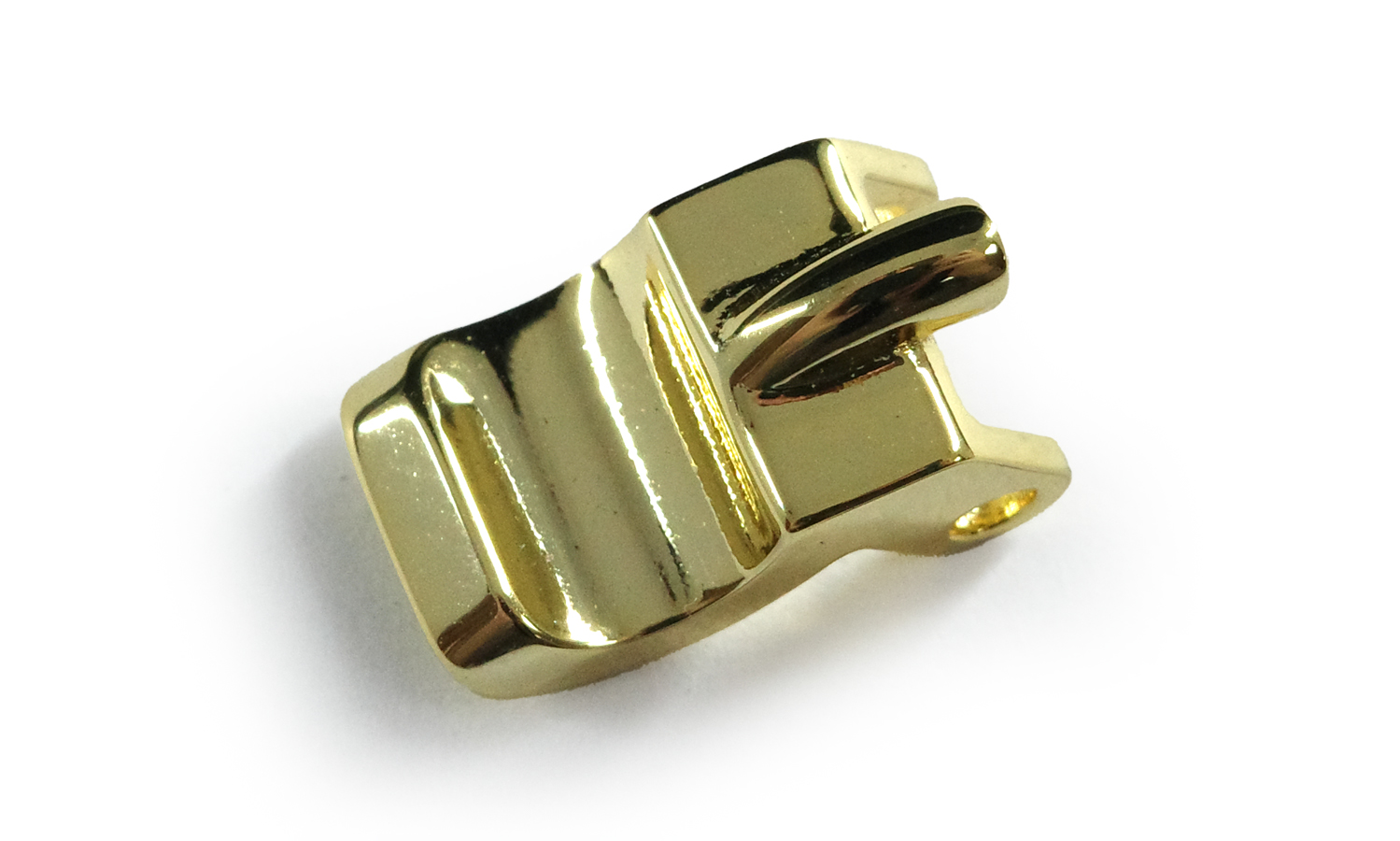

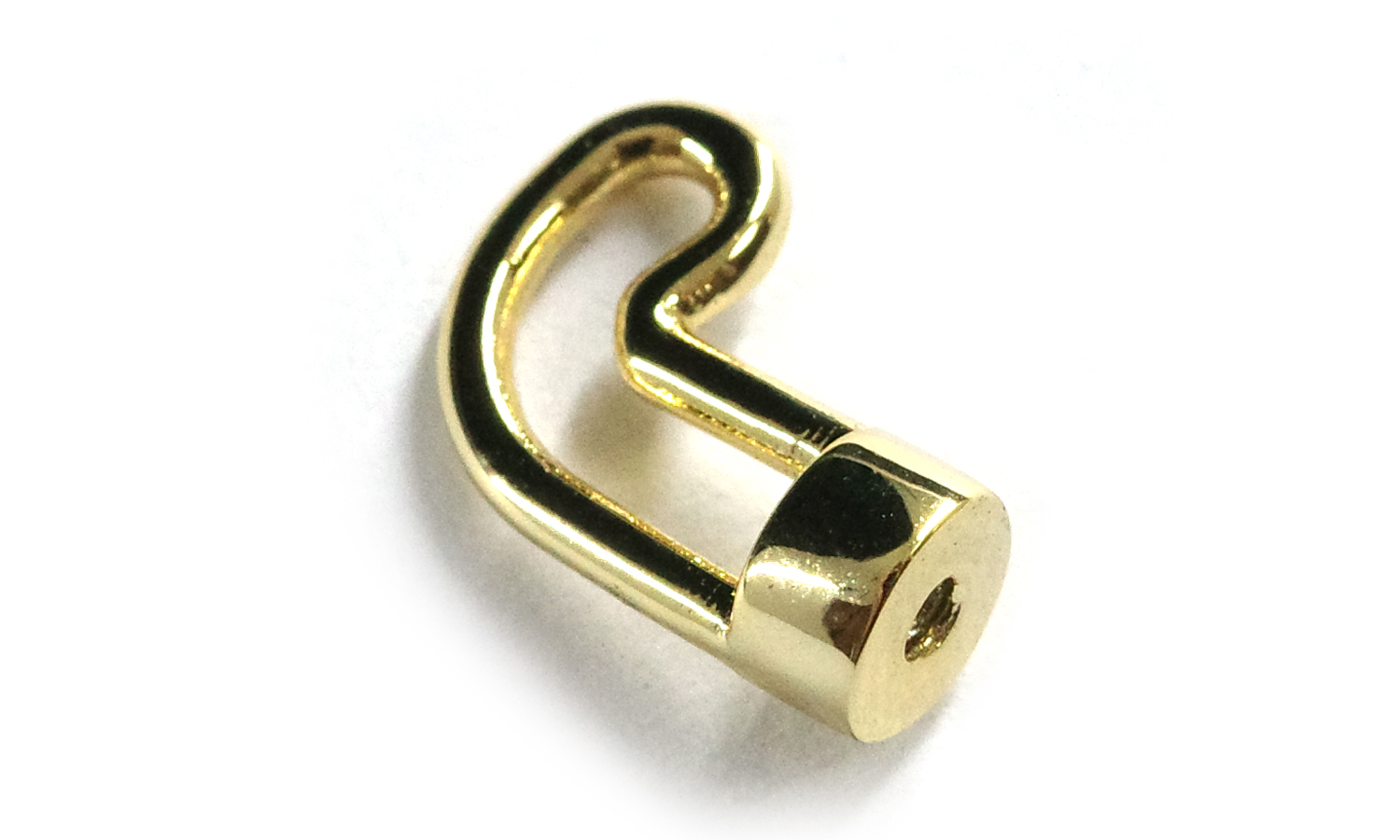

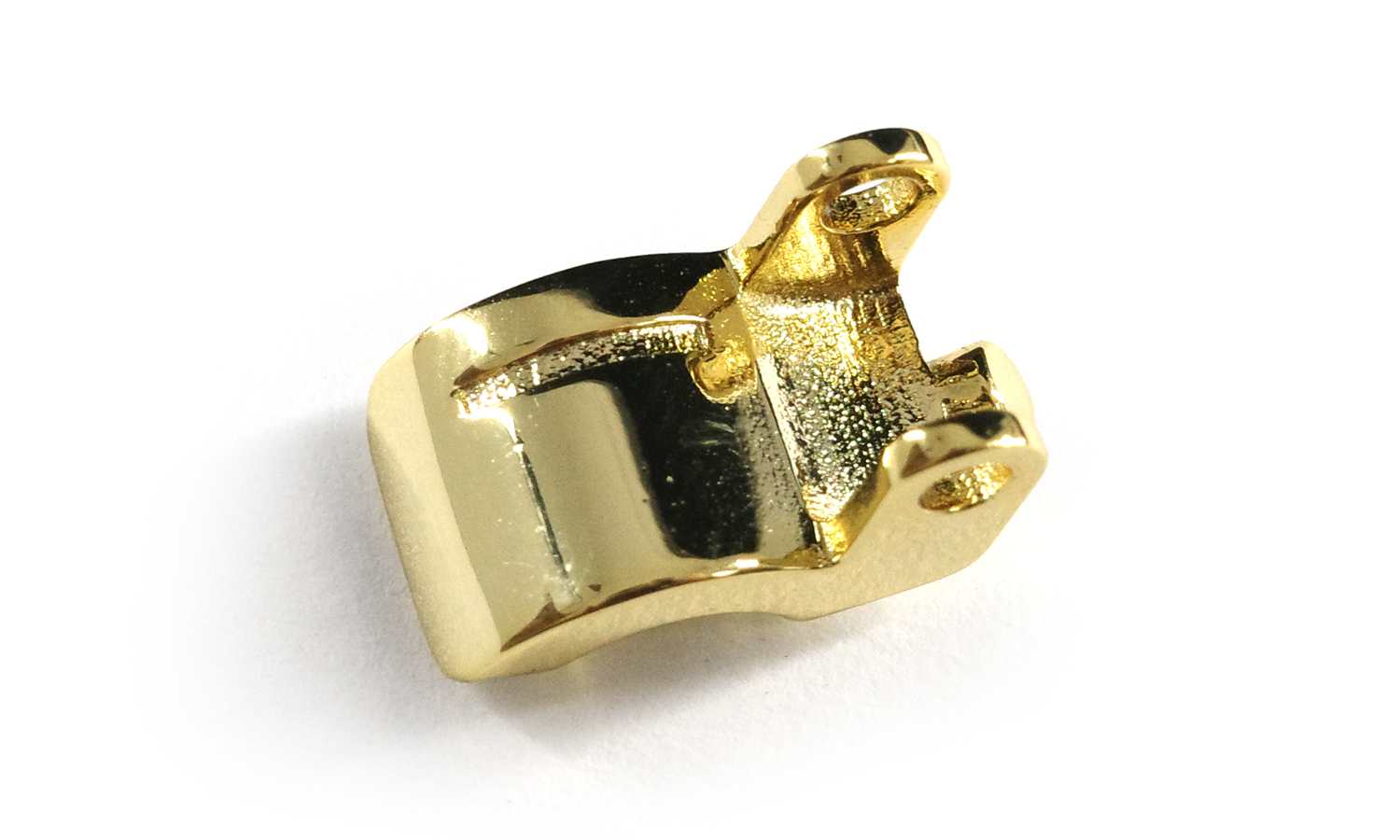

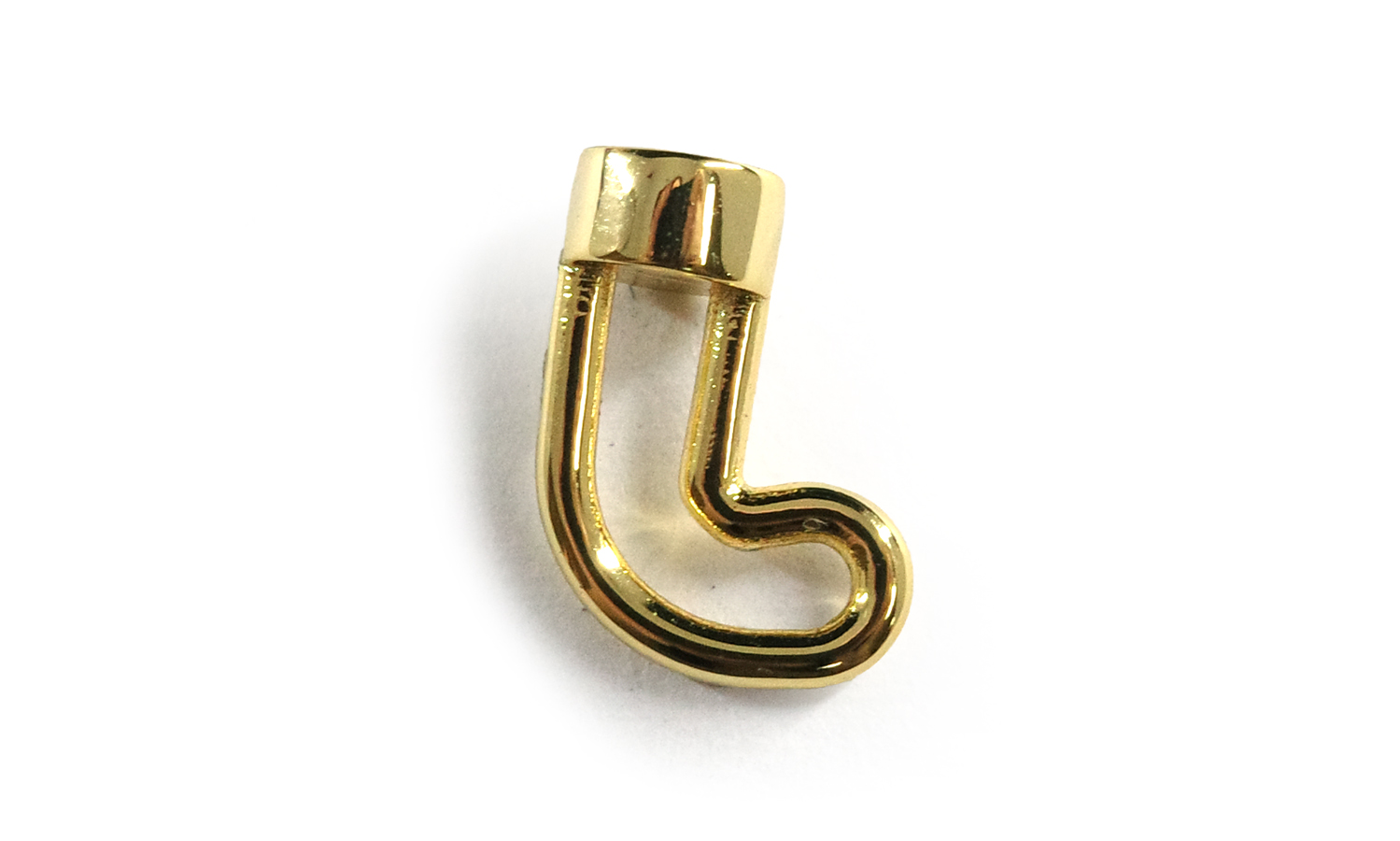

Experience the luxury and durability of our precision-crafted brass samples, meticulously plated with 18K gold. These samples, perfect for snap fastenings, watch clasps, and more, showcase the exceptional quality and versatility of our casting and electroplating services.

Key Features

• 18K Gold Plating: A lustrous and enduring finish that adds elegance and value to your designs.
• 3D Printed Wax Patterns: Ensures intricate details and complex geometries are accurately captured.
• Brass Construction: Offers a strong and reliable base for your gold-plated components.

Note on Plating Imperfections

While our electroplating process is highly advanced, it's important to note that sharp edges and complex geometries can sometimes present challenges. In these areas, the plating material may not adhere as well, potentially leading to minor imperfections like pitting or undercutting. However, these imperfections are typically minimal and do not compromise the overall quality or appearance of the finished product.

FacFox: Your Trusted Partner for Precious Metal Casting and Electroplating

At FacFox, we are committed to providing exceptional casting and electroplating services. Our team of skilled artisans and engineers utilizes state-of-the-art equipment to deliver precision-crafted components that meet the highest industry standards.

Why Choose FacFox?

• Customization: We can tailor our services to meet your specific needs and requirements.
• Quality: Our commitment to excellence ensures that every product we deliver is of the highest quality.
• Efficiency: We streamline our processes to minimize lead times and maximize efficiency.
• Cost-Effective: Our competitive pricing makes our services accessible to businesses of all sizes.

Ready to Elevate Your Designs?

Contact FacFox today to learn more about our precious metal casting and electroplating services. Let us help you create stunning and durable components that exceed your expectations.

Solution

• Step 1: Design Creation.聽The designs for the snap fastenings and watch clasps were created using CAD software.
• Step 2: Wax Patterns Printing.聽The designs were then 3D printed in wax to create precise patterns.
• Step 3: Mold Preparation.聽The wax patterns were encased in a ceramic mold material and allowed to harden.
• Step 4: Wax Removal.聽The molds were heated to melt and remove the wax, leaving a cavity in the shape of the original design.
• Step 5: Brass Casting.聽Molten brass was poured into the ceramic molds and allowed to cool and solidify.
• Step 6: Mold Breaking.聽The ceramic molds were broken away to reveal the brass castings.
• Step 7: Surface Cleaning.聽The brass castings were cleaned to remove any residual ceramic material and impurities.
• Step 8: Polishing.聽The brass pieces were polished to achieve a smooth surface.
• Step 9: Electroplating Preparation.聽The polished brass samples were cleaned and prepared for electroplating.
• Step 10:聽 Gold Electroplating.聽The brass samples were submerged in an electroplating bath containing 18K gold solution, and an electric current was applied to deposit a thin layer of gold onto the surface.
• Step 11: Rinsing and Drying.聽The gold-plated samples were rinsed and dried to remove any remaining plating solution.
• Step 12: Quality Inspection.聽The finished samples were inspected for quality, and any imperfections such as pitting or undercutting were noted, especially in areas with sharp edges and complex geometries.
