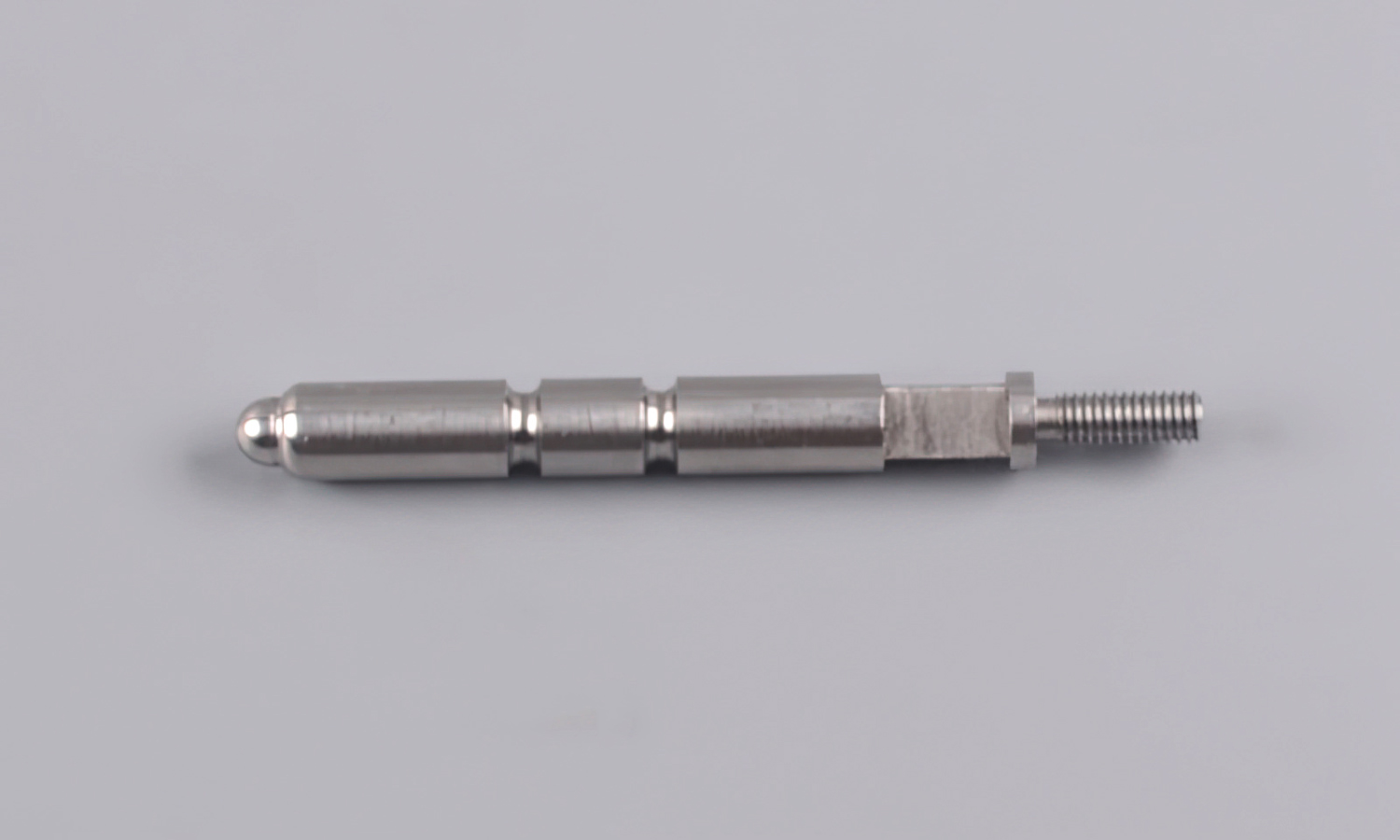

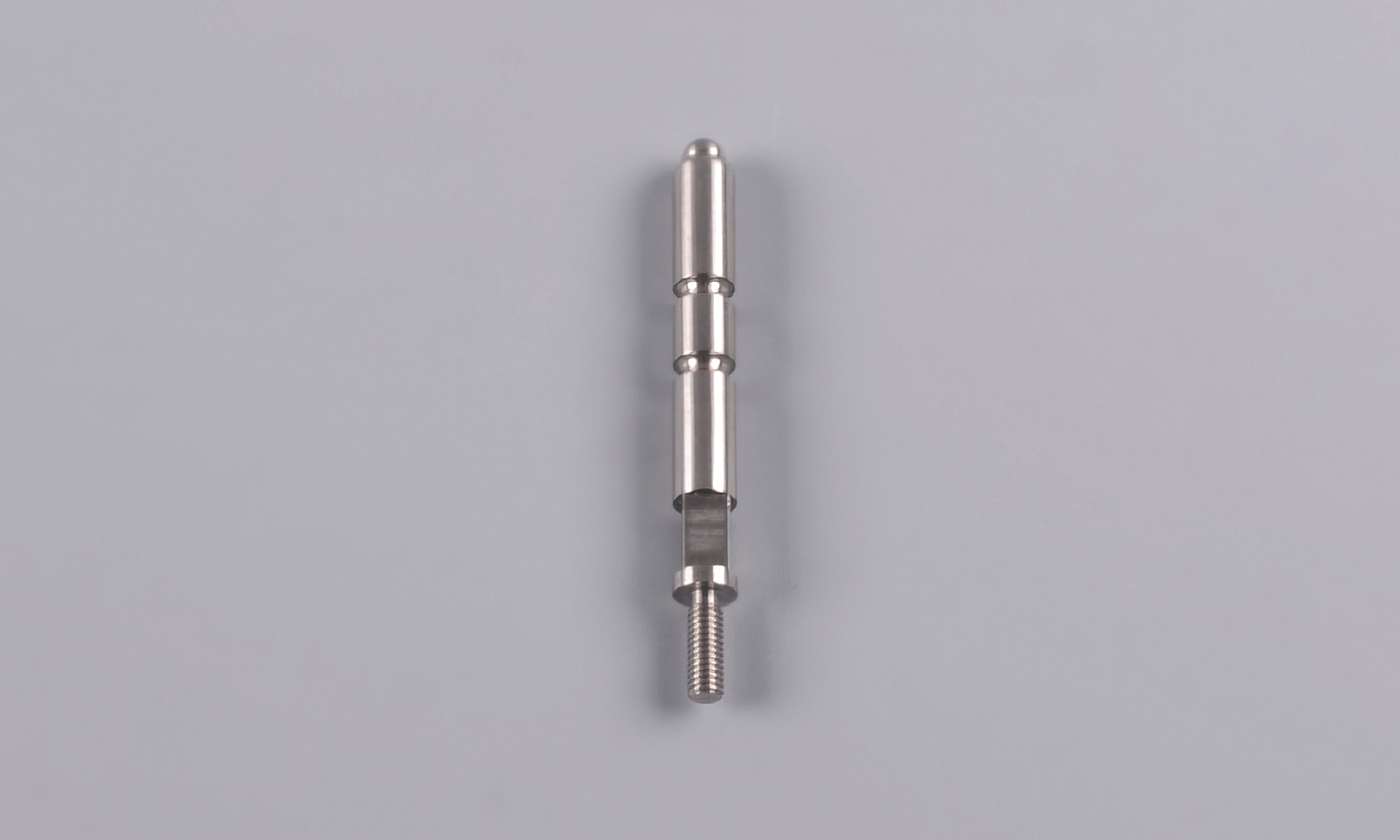

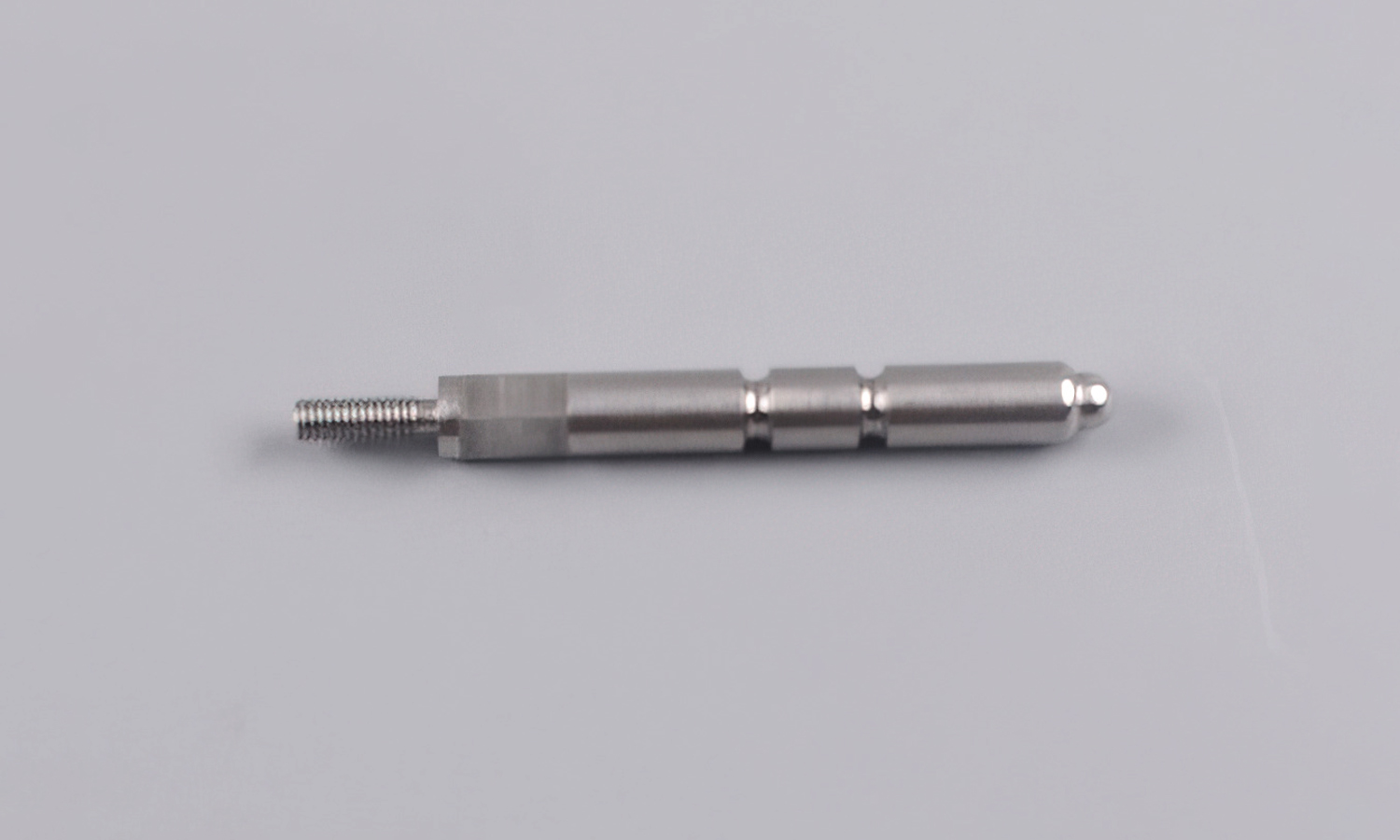

Here is a customed shaft that has been threaded on one tip, and has a slider chain pin structure on the other tip. It is made of aluminum and is CNC milled to ensure precision and accuracy.

If you鈥檙e looking for CNC services, FacFox offers a wide range of services including CNC milling and turning. We specialize in high-precision machining and can help you with your manufacturing needs. You can visit our website at http://home.facfox.com/ for more information:)

Solution

• Step 1: The CAD model was examined and transformed into a CNC-compatible format with the software AutoCAD.
• Step 2: A most suitable type of CNC machine was chosen according to the complexity of the product design and the cost of the workpiece.
• Step 3: Certain operations were configured and the G-codes were input on the machine. The workpiece was mounted on the machine as well.
• Step 4: The workpiece got shaped and the holes were drilled automatically. It would be inspected during and after the machining process for quality assurance.
